TIMELESS & ROBUST
The robust and powerful 3-cylinder engine produces 74 hp and effortlessly powers this versatile tractor, engineered for optimal comfort and productivity. The fully synchronized 12-speed transmission with mechanical shuttle shifts smoothly.
74 HP - 2600 CC
Common-Rail Diesel Engine Simpsons Non Ad-Blue
12-speed gearbox
fully synchronized
Limited slip differential
on the high-performance front axle
Agricultural Tyres
as standard

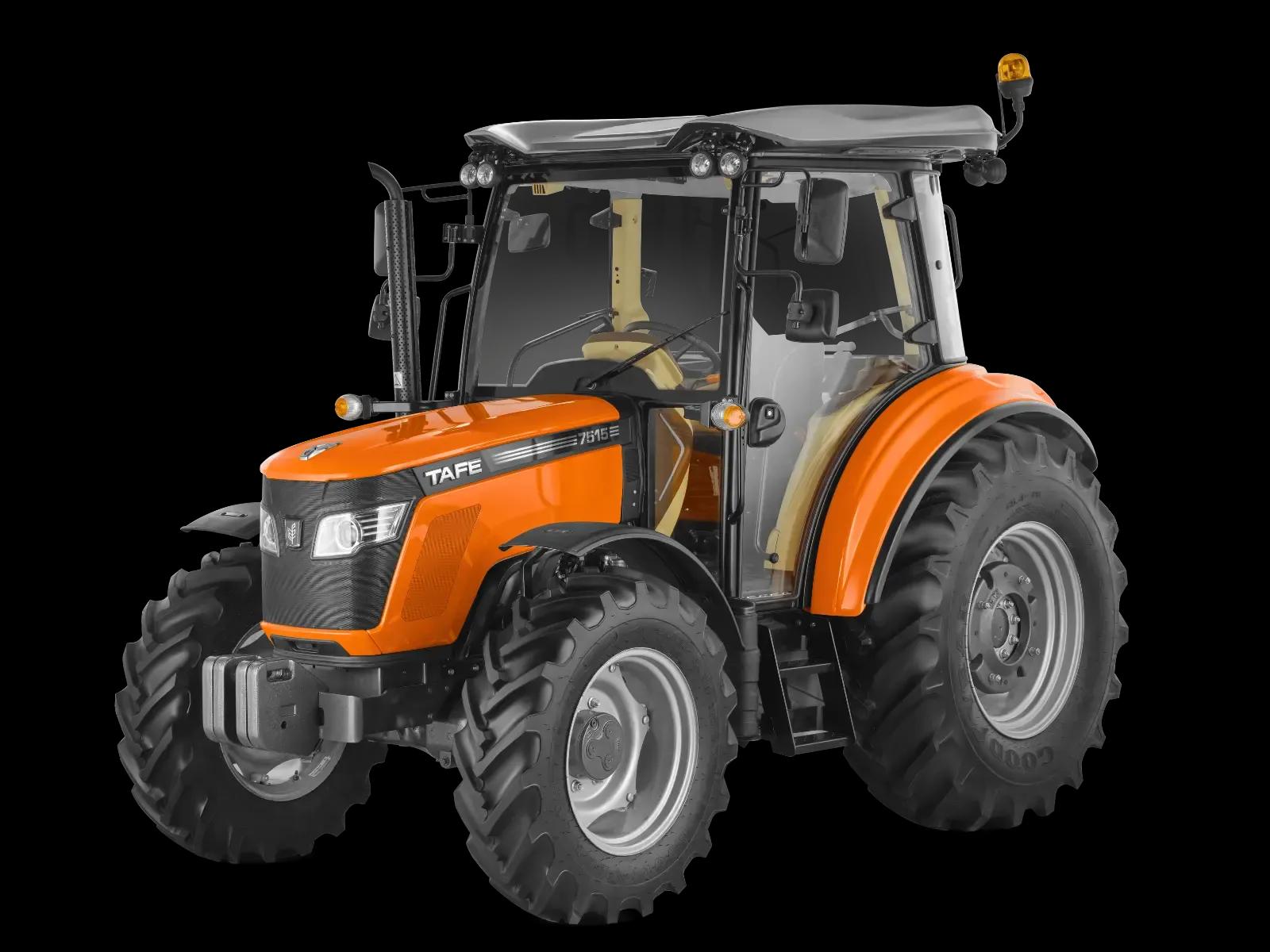

TAFE 7515R
Technical data
Engine & Transmission
Engine & Transmission
Simpsons & Co. Ltd.
Performance
PS
74
Cylinder
3
Maximum torque
Nm
312
Displacement
ccm
2600
Fuel injection pump type
Common rail direct injection
Battery
V
12
Gear type
fully synchronized, mechanical reversing gear
Gears
12 Forward + 12 Backward
Gear shift
Side switching
Steering
Power steering
Maximum speed
km/h
33
Air filter
Dry air filter
Size
Ground clearance*
mm
320
wheelbase
mm
2200
kg
3410
Hydraulics
Hub power
kg
2400
Pump
Tandem Pump
Hydraulic control
Draft, position and reaction control
Brakes
Type
Hydraulically assisted wet multi-disc brake
PTO shaft
IPTO
U/min
2 Speed IPTO, 540 / 540E (750)
Comfort
Bonnet
Lockable
Headlight
Halogen headlights
Seat
Other comforts
Full platform, ROPS, EDC, M-Lift, hanging pedals
